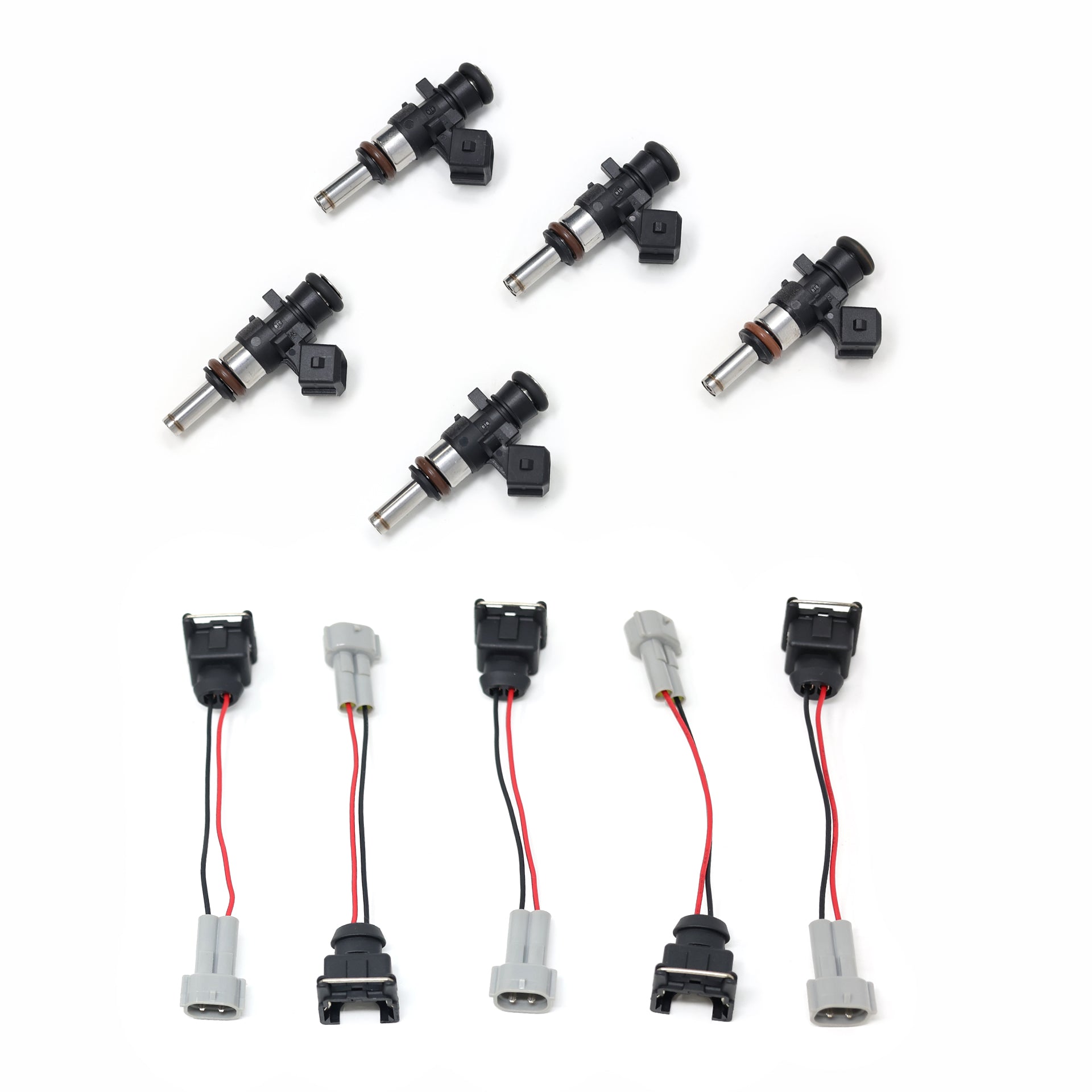

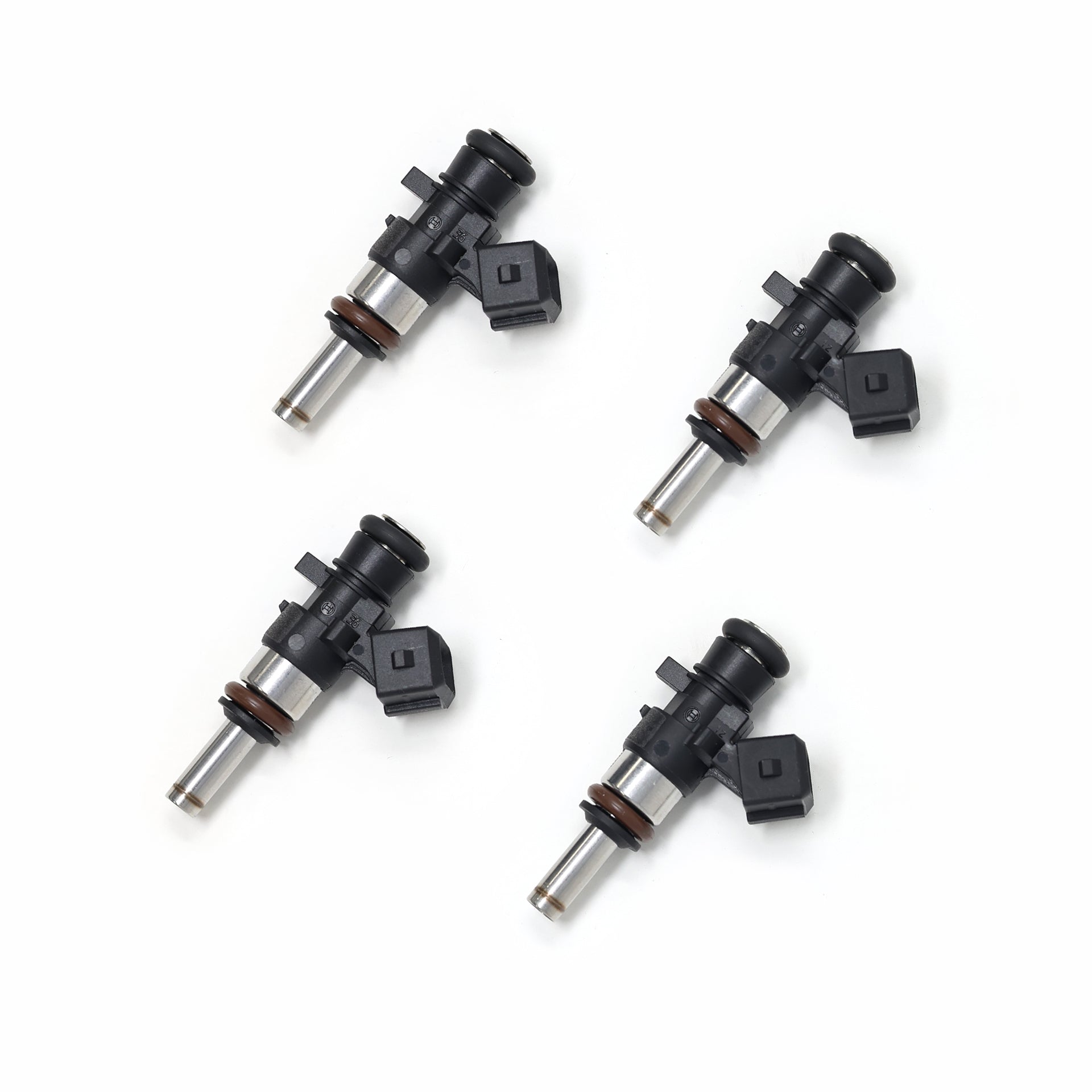

Precision Raceworks Bosch Motorsport Extended Tip Matched Injectors
Precision Raceworks Genuine Bosch Motorsports EV14 extended tip fuel injectors deliver precision fuel delivery for demanding high-performance applications. Featuring EV1 connectors and full stainless steel wetted internals, these injectors provide outstanding corrosion resistance and full compatibility with all known fuels.
Each set is statically and dynamically matched within 2% to ensure balanced flow across all cylinders. Engineered with a proprietary spray pattern optimized for EA888.3 and center-fire BMW manifolds, these injectors utilize a strong magnetic valve design for stable operation at up to 145.0 PSI.
Key Features
| Brand | Precision Raceworks |
| Manufacturer | Bosch Motorsports |
| Product Type | Fuel Injectors |
| Injector Body Type | EV14 Extended Tip |
| Connector Type | EV1 |
| Flow Matching Tolerance | Within 2% (Static and Dynamic) |
| Internal Material | Stainless Steel |
| Fuel Compatibility | Compatible with all known fuels |
| Maximum Operating Pressure | 145.0 PSI |
Highlights
- Full stainless wetted internals for corrosion resistance compatible with all known fuels
- Proprietary spray pattern perfect for use in EA888.3 & center fire BMW manifolds
- Strong magnetic valve design capable of stable operation up to 10 bar
- Advertised flow rates
-

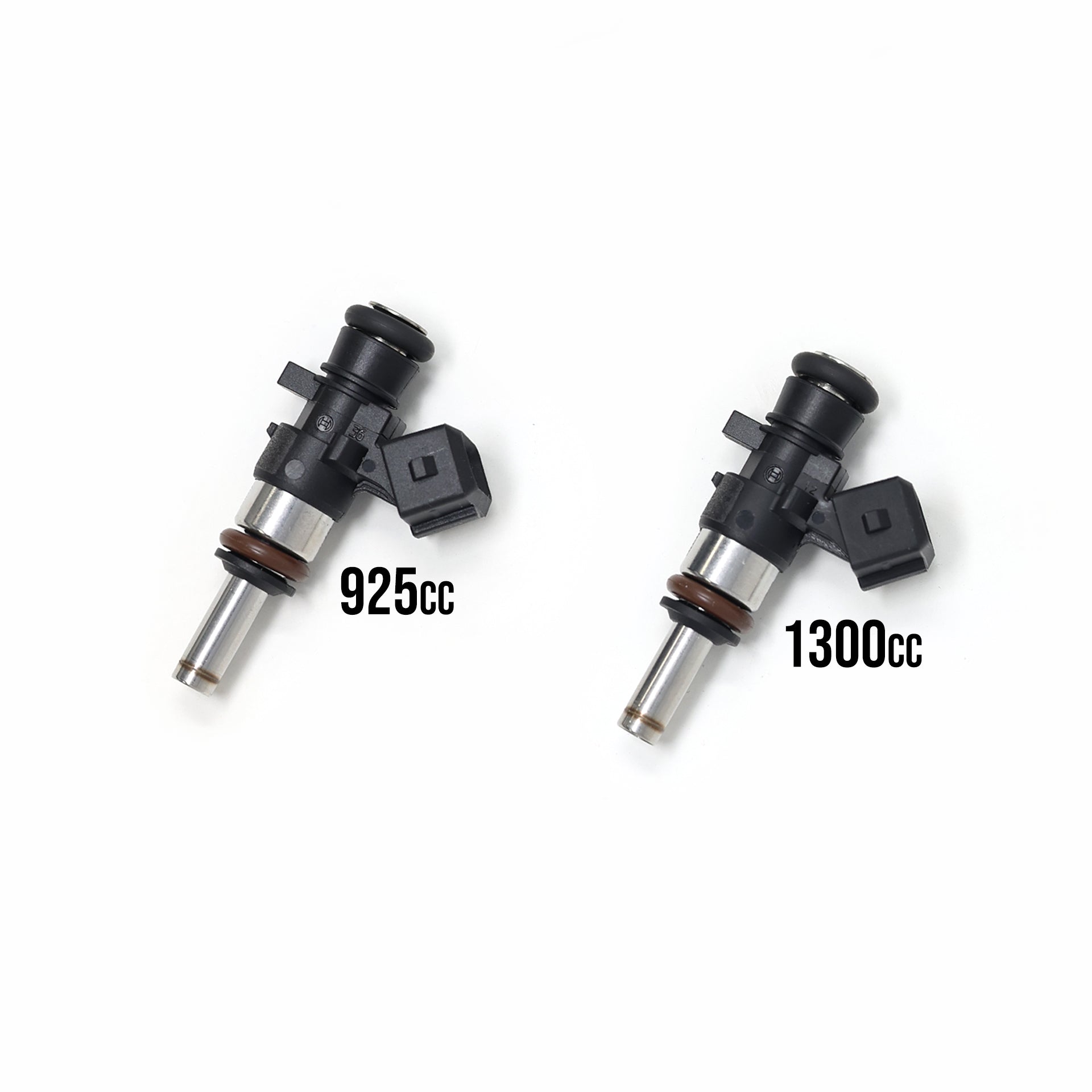

925cc* Version
- Minimum Flow 800cc @ 3bar (43.5 PSI)
- Minimum Flow 925cc @ 4bar (58 PSI)
- Minimum Flow 1050cc @ 5 bar (72.5 PSI)
-
1300cc* Version
- Minimum Flow 1125cc @ 3bar (43.5 PSI)
- Minimum Flow 1300cc @ 4bar (58 PSI)
- Minimum Flow 1450cc @ 5 bar (72.5 PSI)
- Matched both Static and Dynamic within 2%
- Certificate of Conformance provided with each set proving actual flow data
- Individually serialized injectors that match flow data from Certificate of Conformance
*Actual flow rate may vary, as the advertised rate is based upon an overall average.
Compatibility
Optimized for use with EA888.3 engines and center-fire BMW manifolds, as well as port injection systems across compatible Audi, BMW, and Volkswagen applications.
What's included
- Flow-matched Bosch Motorsport extended tip fuel injectors
- Certificate of Conformance with serialized flow data
