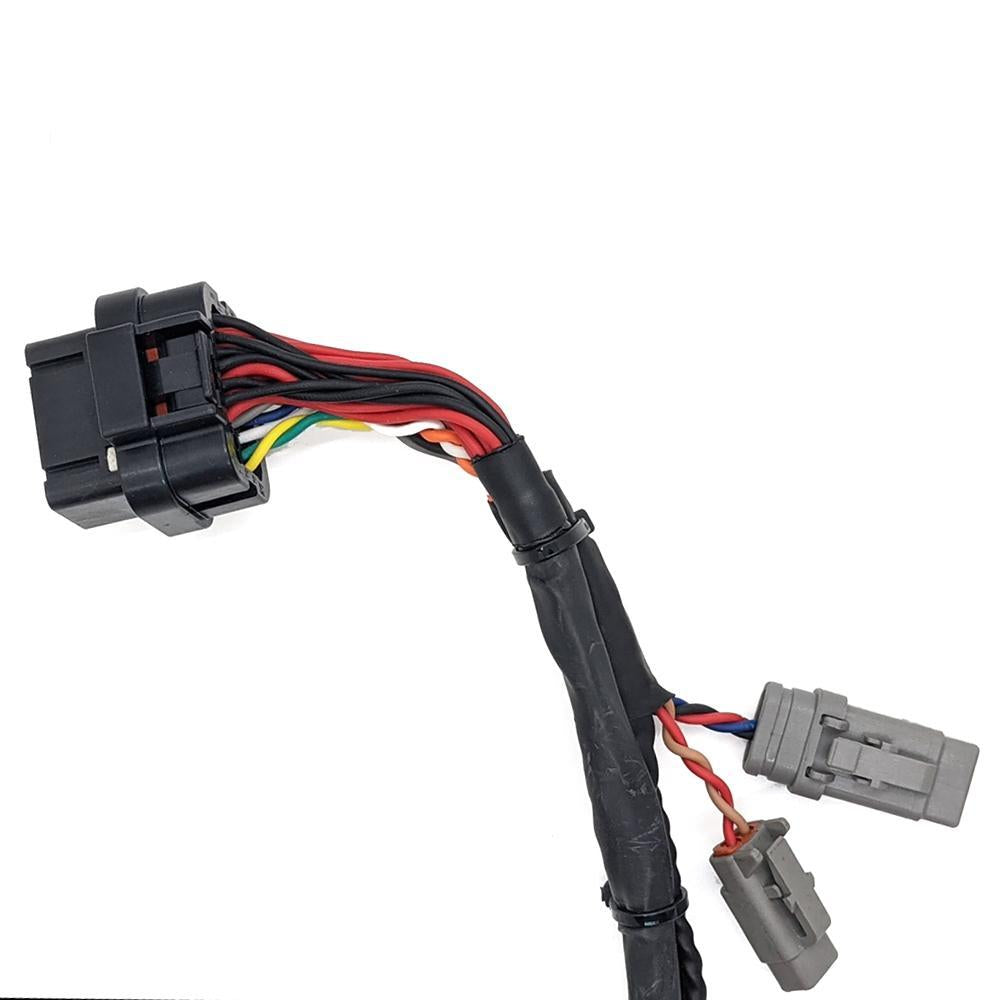

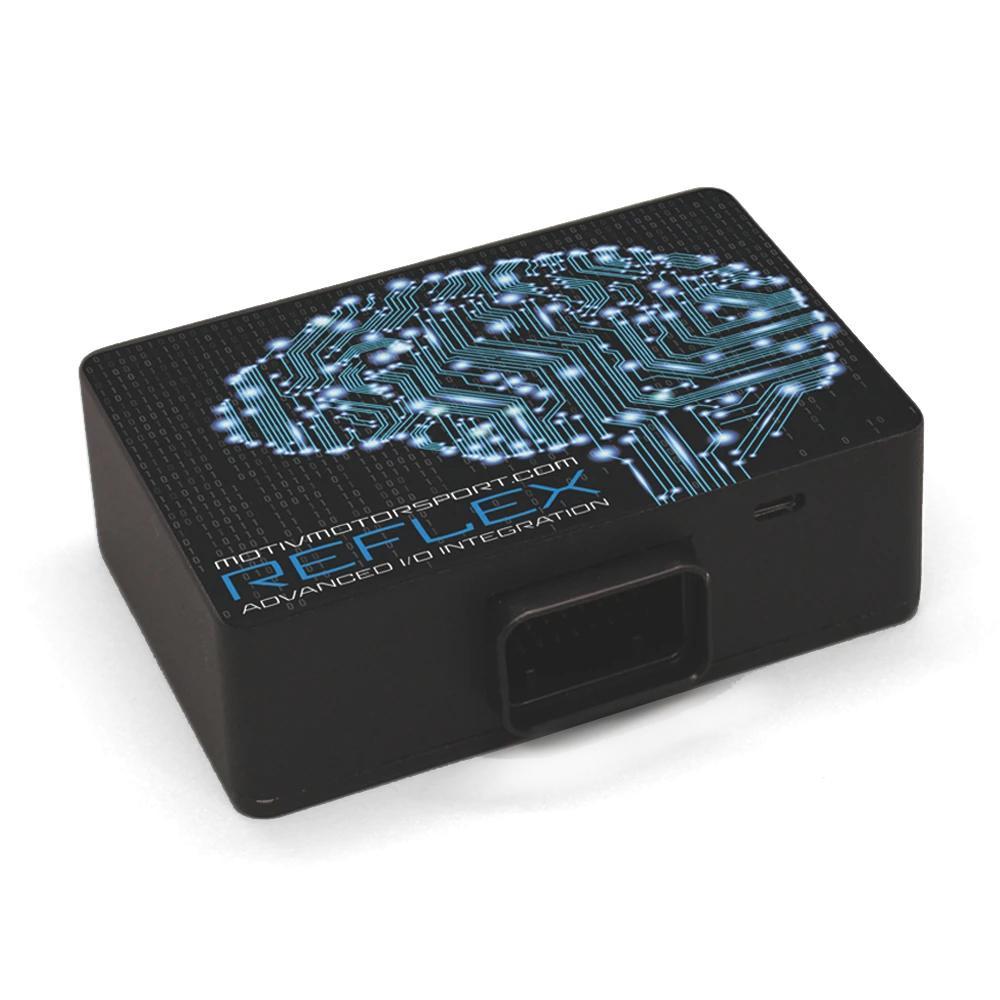

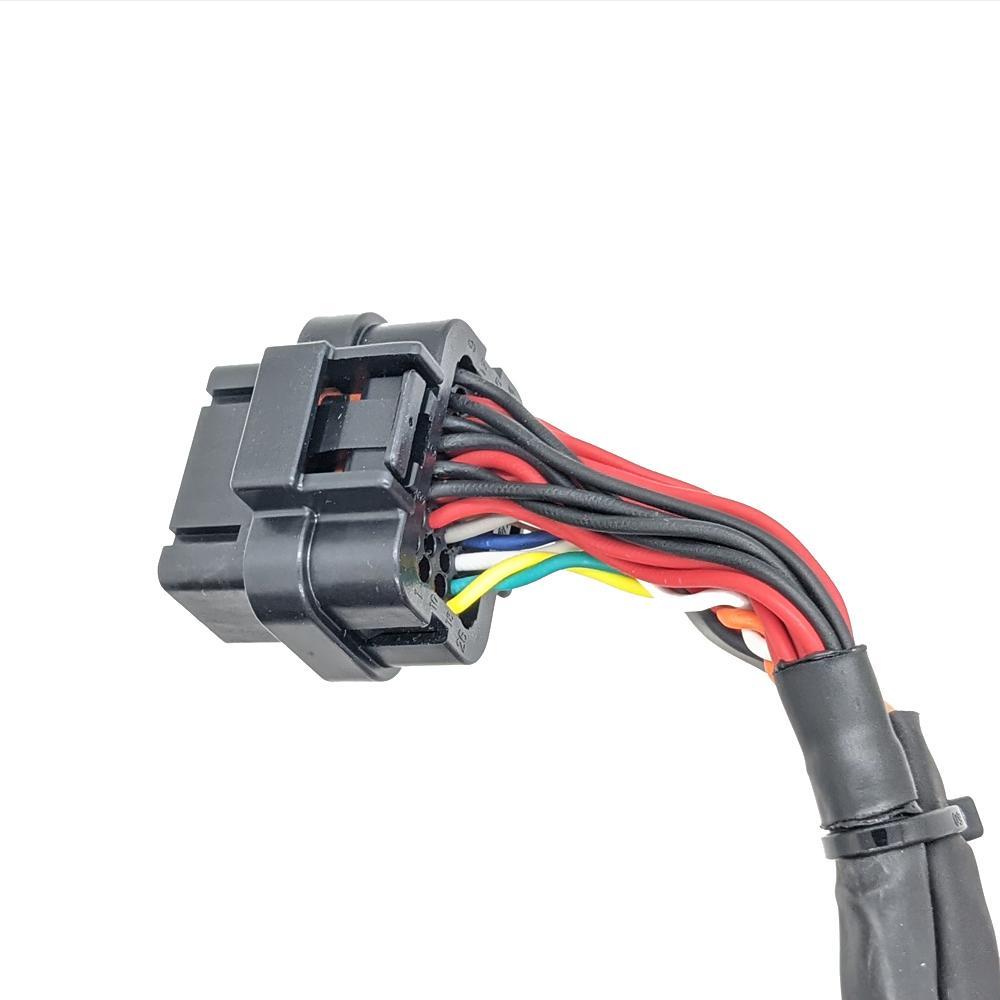

MOTIV ReFlex+ Sequential Port Injection Controller
The MOTIV Re|Flex+ is an advanced auxiliary injection and integration control module engineered to bring supplementary sequential port fuel injection to modern vehicles. Capable of standalone operation or direct CANbus integration with platforms like MHD, bootmod3, and EcuTek, it ensures accurate sequential fuel delivery for optimal efficiency, engine protection, and maximum performance.
Featuring versatile expansion capabilities, this controller supports up to eight injectors alongside multiple auxiliary inputs and low-side outputs for seamless flex fuel analysis, pressure monitoring, boost solenoids, and methanol injection systems. Fully configurable via TunerPro RT, it delivers OEM-level vehicle integration in a compact, high-performance package.
Key Features
| Type | Injector Controller |
| Brand | MOTIV |
| Injector Support | Up to 8 Sequential Injectors |
| Auxiliary Inputs | 4 (Flex Fuel, 2x 4-20mA pressure, 1x 0-5V sensor) |
| Auxiliary Outputs | 4 Ground / Low Side Triggers |
| Communication Interface | CANbus |
| Sensor Inputs | Cam, Crank, MAP |
| Weight | 2.0 lb |
Highlights
- Precise sequential port fuel injection for up to 8 injectors
- Full CANbus integration with factory flash platforms including MHD, BM3, and EcuTek
- Dedicated inputs for flex fuel ethanol analysis, MAP, cam, and crank sensors
- 4 auxiliary low-side trigger outputs for boost solenoids, methanol, and nitrous control
- Programmable and configurable using TunerPro RT software
Compatibility
Compatible universally with custom vehicle setups using programmable cam, crank, and MAP sensor inputs in TunerPro RT. Fully integrates over CANbus with flash platforms including MHD, bootmod3 (BM3), MG Flasher, and EcuTek.
