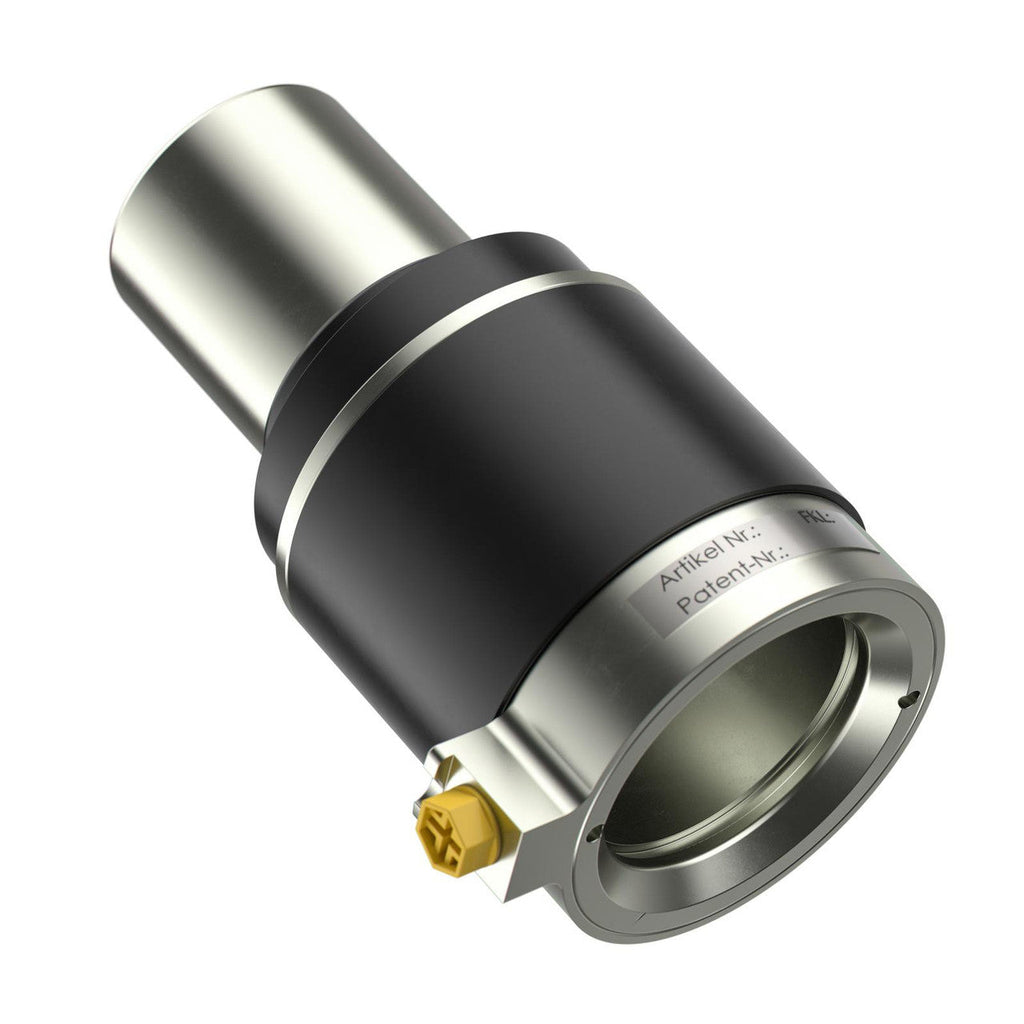

KW HLS 2 Hydraulic Lift System 19271683
The KW HLS 2 is a hydraulic lift system that raises the front axle of a vehicle by up to 45 mm at the push of a button, giving lowered sports cars and everyday vehicles the ground clearance to clear speedbumps, railroad crossings, road works, garages and underground car parks. It installs between the spring plate and springs of each KW strut, and because the system works hydraulically, driving dynamics are not affected.
Activated from inside the vehicle via an LED control button, the HLS 2 lifts in 4 to 5 seconds and can be operated while driving at speeds up to 80 km/h. The vehicle lowers automatically at a certain speed back to the original level of the KW coilover kit or series suspension. The coated aluminum cylinder components are corrosion resistant, and the delivery content includes a control unit that connects to the vehicle's on-board electronics.
Key Features
| Brand | KW |
| Model Number | 19271683 |
| Product Type | Hydraulic Lift System |
| Part Type | Coilover Adjustable Spring Lowering Kit |
| Lift Height | Up to 45 mm |
| Axle Application | Front axle |
| Lifting Time | 4-5 seconds |
| Maximum Activation Speed | 80 km/h |
| Activation | LED control button inside the vehicle |
| Cylinder Material | Coated aluminum |
| Corrosion Resistance | Corrosion resistant |
| Compatibility | KW coilover kits or OE suspension |
| Included Components | Hydraulic lines, hydraulic pump, control unit |
Compatibility
Designed for use with KW coilover kits or OE suspension. The HLS 2 is installed on the front axle between the spring plate and springs of each KW strut.
How to use
Activate the system from inside the vehicle using the LED control button. The front axle lifts in 4 to 5 seconds, and the system can be operated while driving at speeds up to 80 km/h. The vehicle lowers automatically at a certain speed back to the original level of the KW coilover kit or series suspension.
What's included
- Hydraulic lines
- Hydraulic pump
- Control unit
