The KW HLS 2 Hydraulic Lift System raises the front axle of a lowered or low-clearance sports car by up to 45 mm at the push of a button, giving enough clearance to cross speedbumps, railroad crossings, road works, garages and underground car parks without damaging aerodynamic components, underbody protection or the oil sump.
It is a conversion kit for vehicles running original equipment suspension, with a hydraulic cylinder fitted between the spring plate and spring of each front strut so driving dynamics are unaffected. The system lifts in 4 to 5 seconds, can be activated while driving at up to 80 km/h, and automatically lowers the vehicle back to its original level at a set speed. A control unit connects to the vehicle's on-board electronics and is operated from inside the cabin via an LED control button, while the coated aluminium cylinder components resist corrosion.
Key Features
| Brand | KW |
| Model Number | 19271643 |
| Product Type | Hydraulic Lift System |
| Part Type | Coilover Adjustable Spring Lowering Kit |
| System Version | HLS 2 |
| Axle Lifted | Front axle |
| Maximum Lift | 45 mm |
| Lifting Time | 4-5 seconds |
| Activation While Driving | Up to 80 km/h |
| Compatibility | Original equipment suspension |
| Control | LED control button inside the vehicle |
| Cylinder Material | Coated aluminum |
| Corrosion Resistance | Corrosion resistant |
Compatibility
Designed for vehicles with original equipment suspension, the KW HLS 2 is a conversion kit that fits the front axle. It can also be combined with KW coilovers.
What's included
- Hydraulic cylinders for the front axle

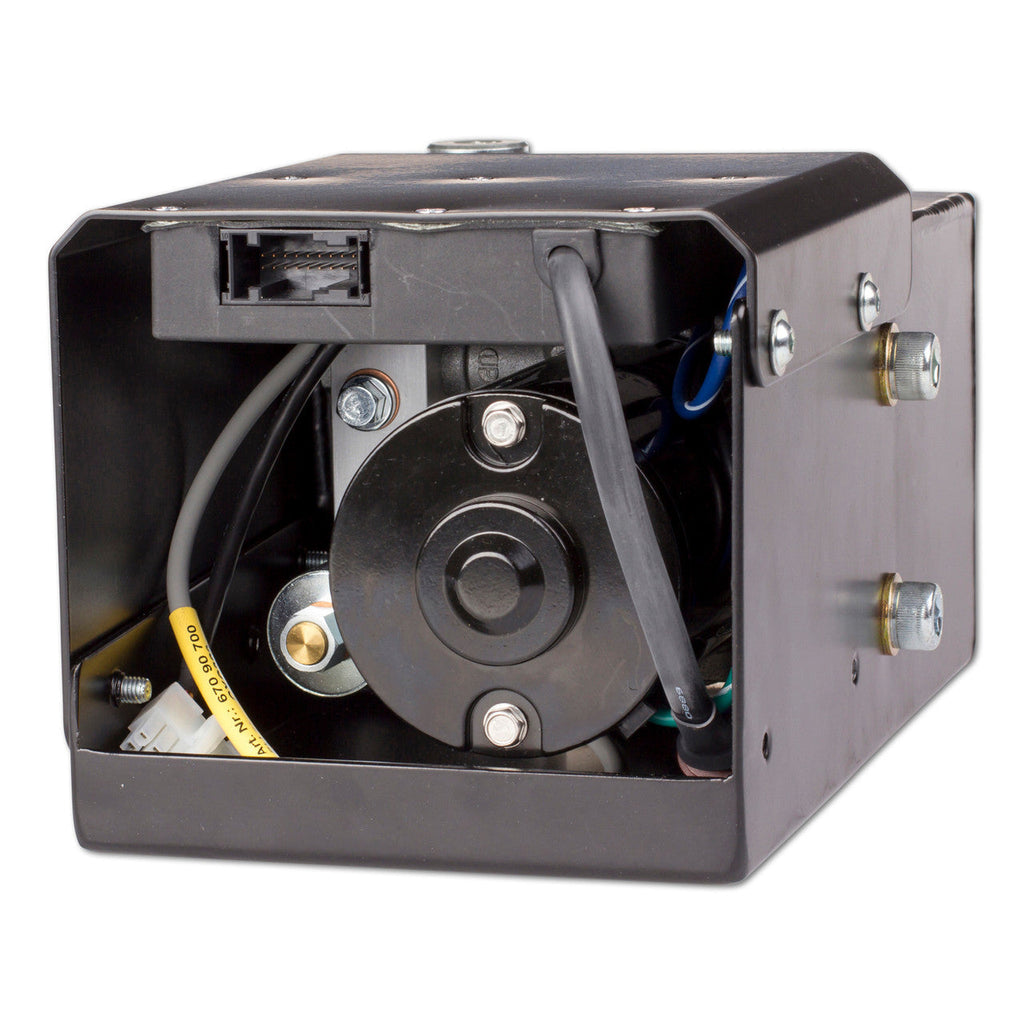

- Hydraulic pump
- Hydraulic lines
- Control unit
- LED control button
