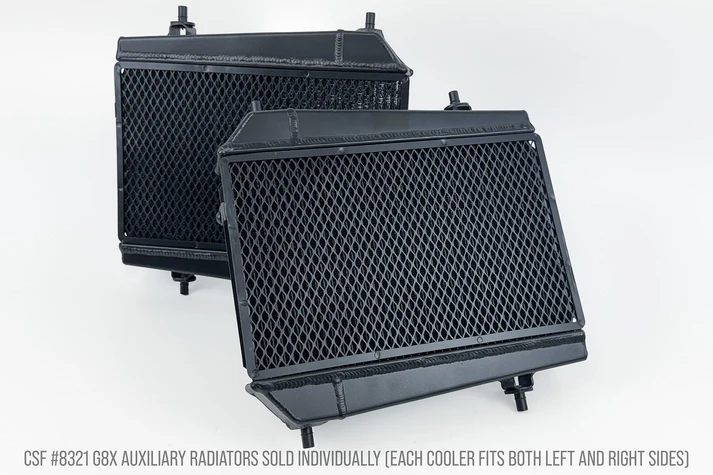

CSF Race BMW G8X M3/M4/M2 High-Performance Auxiliary Radiator 8321
The new CSF Auxiliary Radiators are a great addition to the massively successful G8X Cooling Suite. Like the other cooling systems on the G8X, the aux rads do a pretty good job in stock form. However, once you start adding a lot of power and pushing the car in aggressive driving conditions, the factory systems start to show its limitations. As more and more owners keep pushing the limits of their S58, CSF is here to keep them cool.
CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your G8X M3/M4/M2 running at its best, CSF's High-Performance Auxiliary Radiators are the obvious choice. Designed to perform on the street or at the track, performance aux rads are a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. These radiators feature 2-Row cores with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.
The CSF G8X M3/M4/M2 auxiliary radiators are a true "Drop-in fit" design requiring no modifications to install. OE style brackets are all CNC machined and welded for the best durability possible. Inlet/Outlet connections are designed to match the OE connections so you can reuse OEM hoses or aftermarket. Trust the cooling experts at CSF for the best performing, highest-quality, and most reliable radiators.
